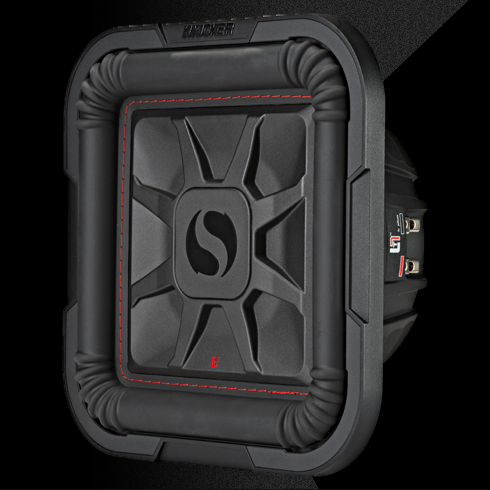

10" L7T 2 Ohm
The L7T 10-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.
SoloKon™ technology uses an injection-molded polypropylene cone and 360-degree back bracing as a single solid unit - both cooling the motor and eliminating distortion. Patented ribbed corners are incorporated into the high-roll Santoprene® surround to move smoothly under high SPL. We then stitch the cone to the surround, providing an additional level of integrity that thrives no matter the application.
Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The L7T 10-inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power. See below for more details.
Size (IN.,CM) - 10, 25
Impedance (OHMS) - 2 DVC
Recommended Amplifier Power (watts RMS) - 500
Peak Power (watts, per ANSI/CTA-2031-A) - 1000
Sensitivity (dB 1w/1m) - 85.98
Frequency Response (Hz) - 25-100
Mounting Depth (IN.,CM) - 3-3/4, 9.5
Mounting Cutout, Square (IN.,CM) - 9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters) - .4, 11.3
Max Rec Sealed Box Volume (CU. FT., Liters) - 1.25, 28.3
Min Rec Vented Box Volume (CU. Ft., Liters)** - 1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)** - 1.75, 49.6
