Description
Pioneer brings CES-X to your dash
As we use our phones more and more, plus-sized car displays and the ability to easily integrate your phone with your car's audio system have become more and more desirable. Pioneer's been at the forefront of these trends for years, and now they've upped the ante with the DMH-WT5000NEX multimedia receiver. This receiver is built for the future, incorporating Pioneer's innovative technology designed for today's drivers — CES-X.
Product highlights:
- digital multimedia player with AM/FM tuner (does not play CDs or DVDs)

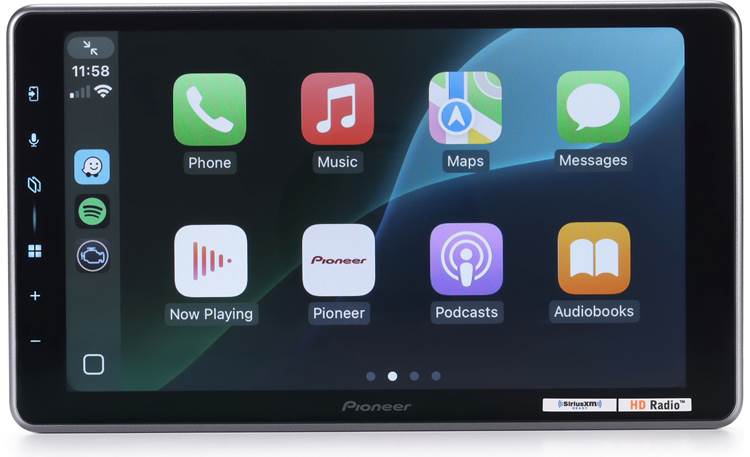

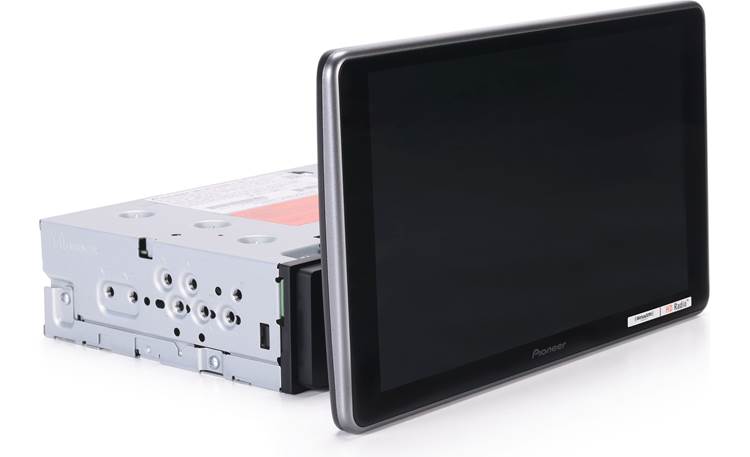

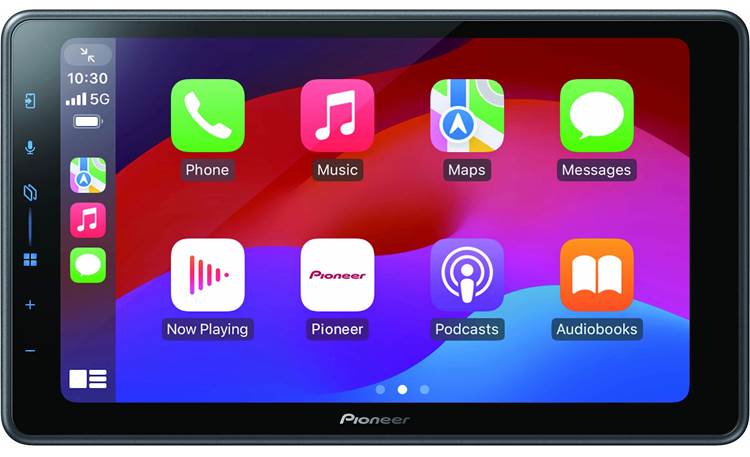

- 9" floating capacitive HD touchscreen display
- fits single-DIN dash openings
- plays media loaded with MP3, WMA, AAC, and high-res FLAC and WAV music files
- built-in Bluetooth for hands-free calling and music streaming
- built-in HD Radio tuner
Smartphone features:
- Android Auto and Apple CarPlay compatible (wired or wireless)
- Amazon Alexa via Pioneer Vozsis app
- display and command of select music, navigation, and other apps with iPhone and Android
- Pandora and Spotify control through Apple CarPlay, Android Auto, and Amazon Alexa
- screen mirroring for Android/iPhone via Pioneer's WebLink app (requires wired USB connection)
Expandability:
- compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)

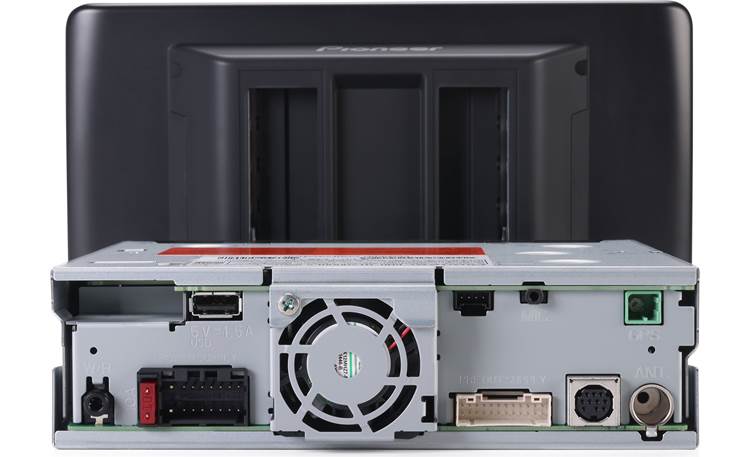

- inputs: rear USB input, rear A/V input (3.5 mm), two camera inputs (RCA)
- outputs: 6-channel preamp outputs (4-volt front, rear, sub)
Other information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (14 watts RMS CTA-2006/50 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- works with iDataLink Maestro and Axxess modules
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
- dimensions:
- screen: 9.25"W x 5.375"H x 2.5625"D
- chassis: 7.015"W x 1.975"H x 6.695"D

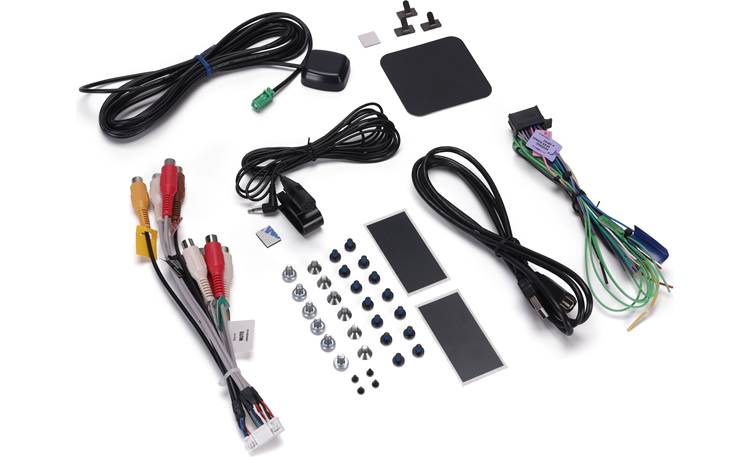

What's in the box:
- Touchscreen monitor (rear cover pre-installed)
- Source unit (10A fuse)
- Wiring harness
- Preout/AV harness
- 58" USB extension cable
- Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- GPS antenna (attached 11.5' cable)
- Self-adhesive square
- 3 Self-adhesive clips
- Two-sided tape
- Monitor bracket
- Monitor spacer
- 6 Pan-head ISO screws (M5x8mm)
- 6 Flat-head ISO screws (M5x8mm)
- 4 Binding head screws (M4x30mm)
- 4 Binding head screws (M4x12mm)
- 4 Binding head screws (4mmx6mm)
- 4 Machine screws (M2x4mm)
- 2 Stickers
- Quick Start Guide
