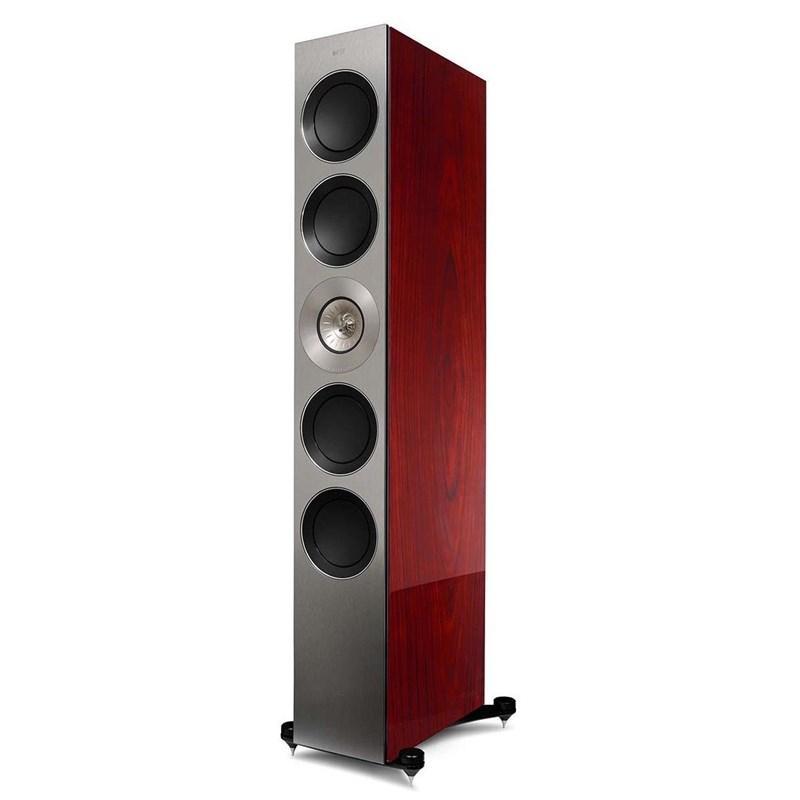

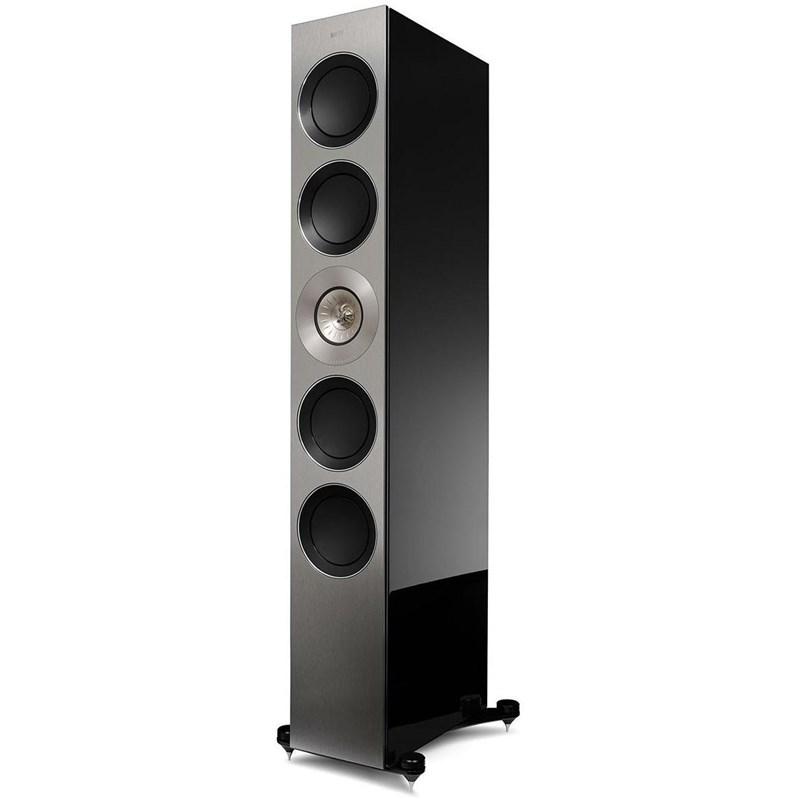

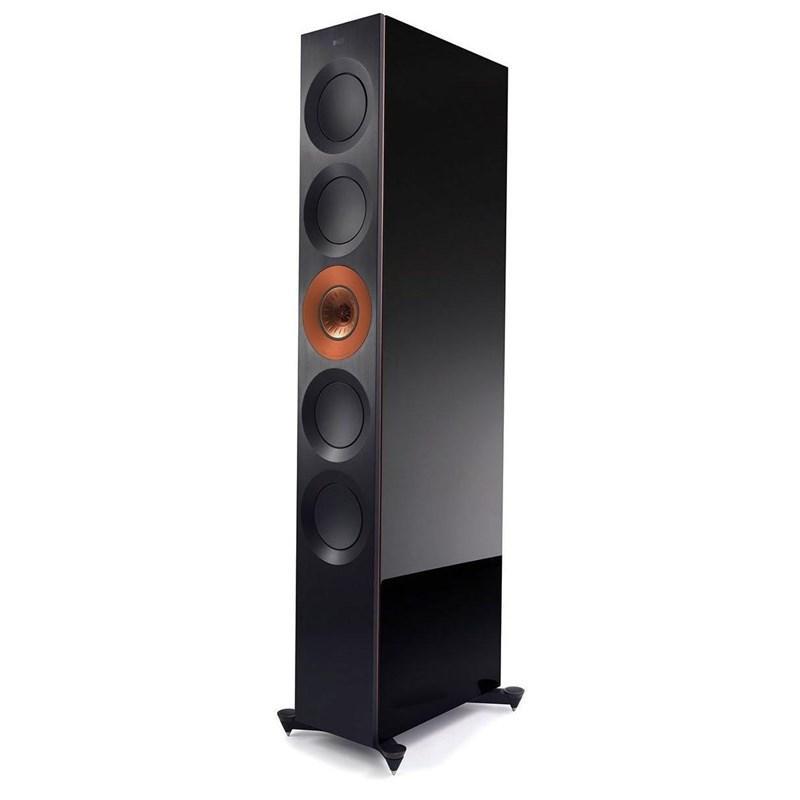

KEF REFERENCE 5 Floor Standing Speaker

In-Store Pickup Only
KEFSKU: REFERENCE 5 (W)

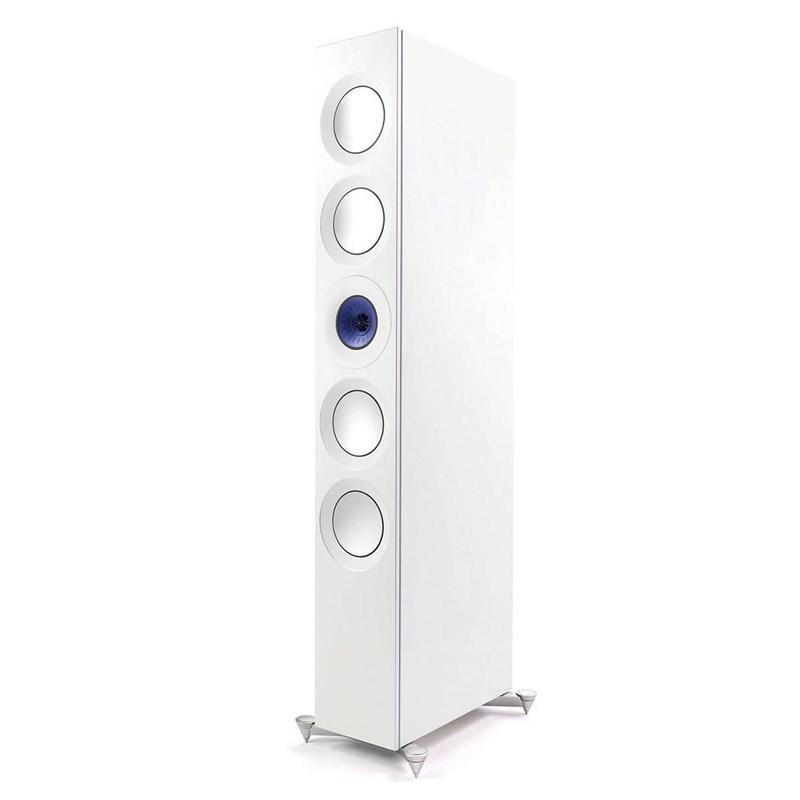

Size: White

Please contact us for pricing and availability at 315-458-5000 or email us at info@teamiu.com.

Description

Flagship three-way floorstander

If you're serious about experiencing the ultimate in sound reproduction, the magnificently authoritative Reference 5 exemplifies the passion for innovation that underpins The Reference design philosophy.

Hand-built in Maidstone, UK.



SOUND

REFERENCE 5

This three-way floorstander aligns four powerful 165mm (6.5 inch) bass drivers with KEF's latest 125mm (5 inch) Uni-Q array and the new vented 25mm (1 inch) aluminium dome tweeter. Lows are reproduced with consummate agility and control, integrating with the midrange to create spine-tingling accuracy and depth.



SPECIFICATIONS

WEIGHT

60.2kg (132.7lbs)

DIMENSION (H X W X D)

H x W x D with grille and terminal :
1350 x 205 x 470 mm (53.1 x 8.0 x 18.5 in. )

H x W x D with grille, terminal & plinth :
1397 x 349 x 470 mm (55 x 13.7 x 18.5 in.)

DESIGN

Three-way bass reflex

UNIT MEASUREMENT

Pair

FREQUENCY RANGE

Typical in room bass response: 25Hz (-6dB)
Free Field - Short port: 35Hz - 45kHz (-6dB)
Free Field - Long port: 32Hz - 45kHz (-6dB)

FREQUENCY RESPONSE

40Hz - 35kHz (±3dB)

CROSSOVER FREQUENCIES

350Hz, 2.8kHz

MAXIMUM OUTPUT

116 dB (peak sound pressure level at 1m with pink noise)

AMPLIFIER CLASS

50-400W

SENSITIVITY90DB (2.83V/1M)

Harmonic distortion2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz

IMPEDANCE8 OHMS

(min.3.2 Ohms)

DRIVE UNITS

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units: LF: 4 x165mm (6.5in.) aluminium

CROSSOVER FREQUENCIES

350Hz, 2.8kHz
