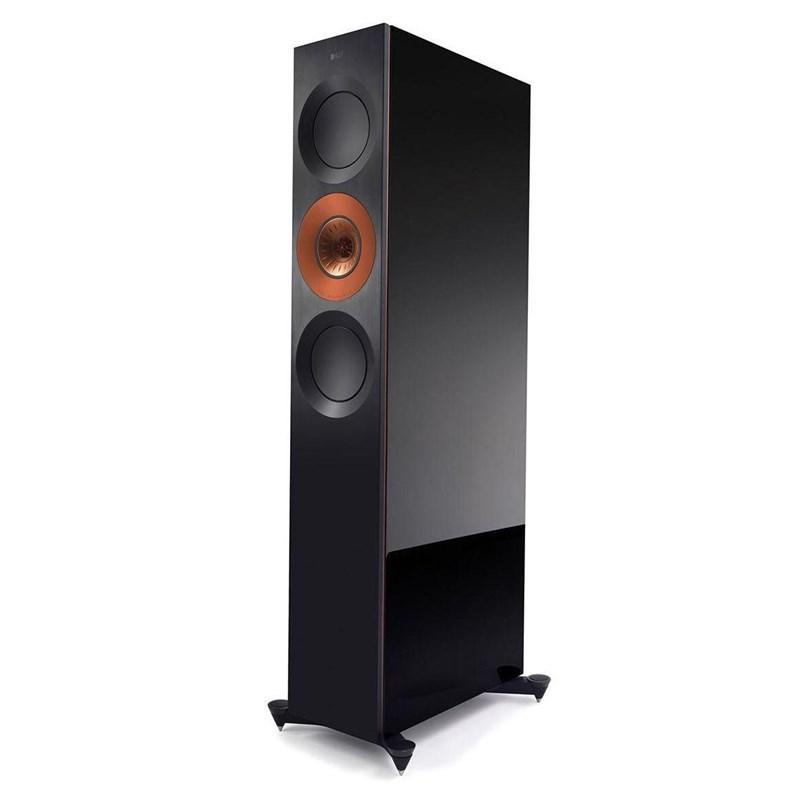

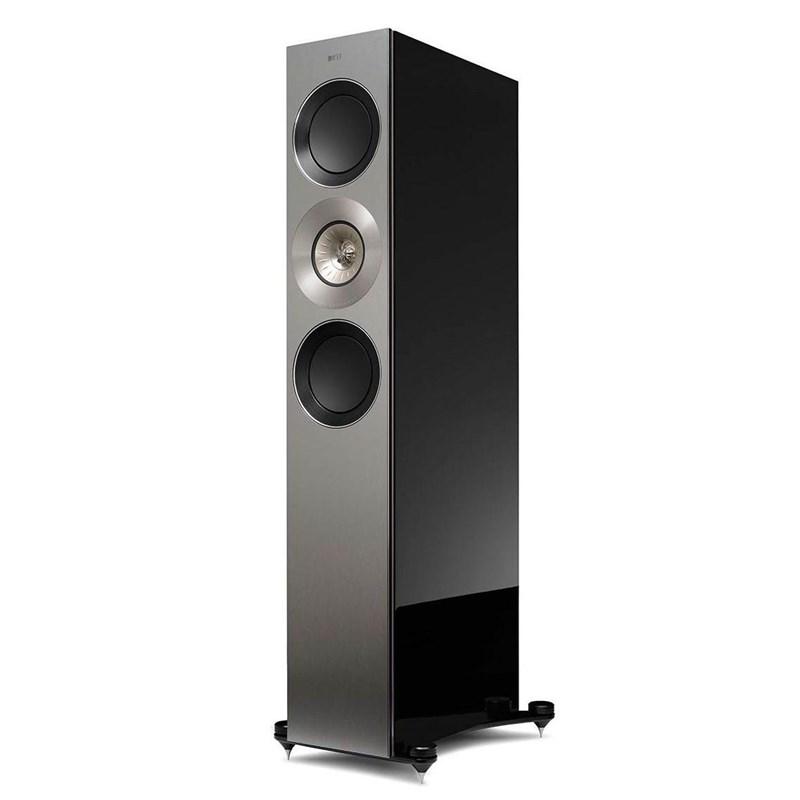

KEF REFERENCE 3 Floor Standing Speaker

KEFSKU: REFERENCE 3 (B)

Color: Black
Price:
$6,999.95

Description

Mid-sized three-way floorstander

Reference 3 has the uncanny ability to generate an intricate, emotionally compelling three-dimensional soundstage that places you right at the heart of the original performance.

Hand-built in Maidstone, UK.



SOUND

REFERENCE 3

Two 165mm (6.5 inch) bass drivers positioned above and below KEF's latest 125mm (5 inch) MF/HF Uni-Q driver array means that fidelity across the midrange and treble is outstanding. Everyone in the room can enjoy the same rich, spatially precise imagery and it puts them right at the heart of the original performance.



SPECIFICATIONS

WEIGHT

51.3kg (113.1lbs)

DIMENSION (H X W X D)

H x W x D with grille and terminal : 1155 x 205 x 470 mm (44.5 x 8.1 x 18.5 in.)
H x W x D with grille, terminal & plinth : 1202 x 349 x 470 mm (47.3 x 13.7 x 18.5 in.)

DESIGN

Three-way bass reflex

IMPEDANCE

8 Ohms (min.3.2 Ohms)

UNIT MEASUREMENT

Pair

FREQUENCY RANGE

Typical in room bass response: 28Hz (-6dB)
Free Field - Short port: 38Hz - 45kHz (-6dB)
Free Field - Long port: 35Hz - 45kHz (-6dB)

CROSSOVER FREQUENCIES

350Hz, 2.8kHz

FREQUENCY RESPONSE

43Hz - 35kHz (±3dB)

HARMONIC DISTORTION

2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz

MAXIMUM OUTPUT

113.5 dB (peak sound pressure level at 1m with pink noise)

AMPLIFIER CLASS

50-300W

NOMINAL IMPEDANCE

8Ohms (min.3.2Ohms)

SENSITIVITY

87.5dB (2.83V/1m)

DRIVE UNITS

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units:
LF: 2 x165mm (6.5in.) aluminium

BASS DRIVER:

LF: 4x 165mm (6.5in.) hybrid aluminium

CROSSOVER FREQUENCIES

400Hz, 2.9kHz

FINISHES

Black Gloss / White Gloss / Walnut
