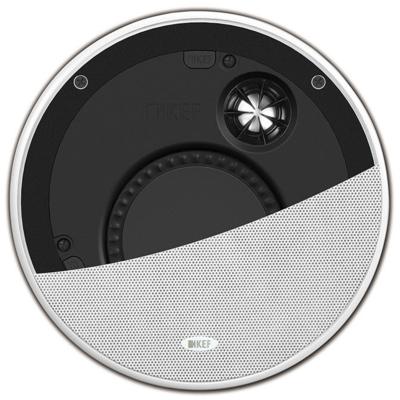

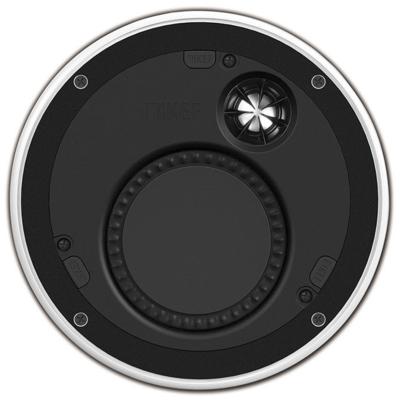

KEF Ci160TR In-Ceiling Speaker

In-Store Pickup Only
KEFSKU: Ci160TR

Please contact us for pricing and availability at 315-458-5000 or email us at info@teamiu.com.

Description

Features KEF’s patented Uni-Q driver array

Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments your music system.

Ci160TR

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments or your music system.

Key Features

  • <36mm mounting depth allows fitment to very restricted cavities
  • Ultra-low profile LF unit with excellent bass extension
  • Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
  • Rigid flat diaphragm assures clean upper bass and mid-range response
  • Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
  • Fast, versatile installation on virtually any surface via dogleg or direct screw fastening



SPECIFICATIONS

NOMINAL IMPEDANCE

8 Ohm

SENSITIVITY

87dB (2.83V/ 1m)

CROSSOVER RESPONSE

1.7kHz

FREQUENCY RESPONSE

110Hz - 24kHz (±6dB) open backed

DRIVE UNITS

LF: 115mm (4.5 in.) dual layer MF
HF: 25mm (1 in.) aluminium HF

RECOMMENDED AMPLIFIER POWER

10-100W

PRODUCT EXTERNAL DIMENSION (H X W X D)

Diameter: 234.6mm (9.24 in.)
Depth: 40mm (1.57 in.)

CUT-OUT DIMENSIONS (H X W)

196mm (7.71 in.)

MOUNTING THICKNESS

Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)

MOUNTING DEPTH FROM SURFACE

36mm (1.42 in.)

MINIMUM WALL THICKNESS

10mm (0.39 in.)

MAXIMUM WALL THICKNESS

25.5mm (1 in.)

OPTIONAL ROUGH IN FRAME

RIF160R

OPTIONAL REAR ENCLOSURE

RNC160R

NET WEIGHT

1.kg

UNIT MEASUREMENT

Piece
